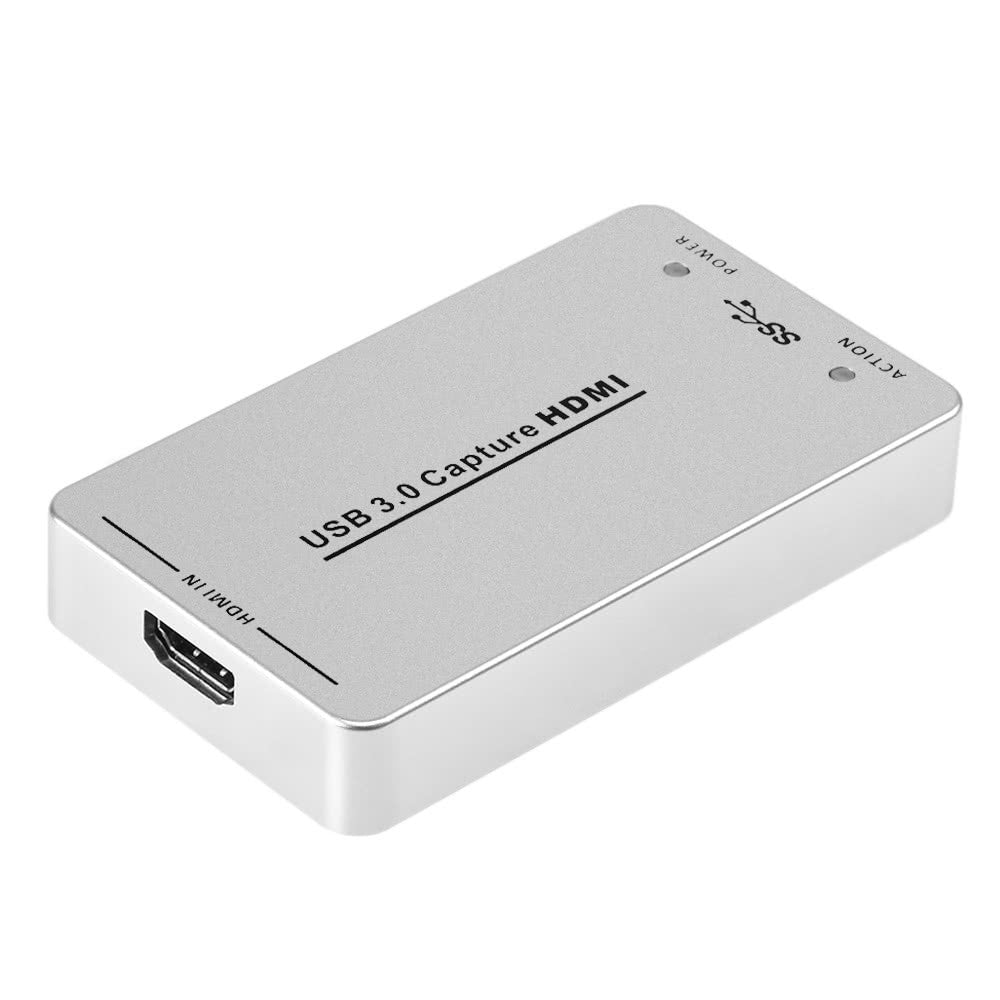

HDV-UH60 USB 3.0 Capture HD to USB3.0 Video Capture Dongle HD 1080P HD Drive Free Superior AV Capture Device Compatibility for PS3 PS4 XBox DVD Video Game Recorder Compatible with Win7/8/10 Mac Linux OS

HDV-UH60 is a HD to USB3.0 High-definition Video Capture Dongle which no need to install the drivers and supports plug and play. It features superior performance superior compatibility and easy to install & carry. It can capture one single channel HD HD video signals and support the resolution of Input and Output Video Signal up to 1080P at 60Hz. And it is compatible with UVC video capture and YUV 422 video output. The UAC is compatible with HD audio capture and 48KHz PCM audio output. In additional it has super compatibility compatible with Windows Linux Mac OS X and USB 3.0 interface. It will bring you much convenience and fun.

Features
[High-performance Capture Dongle]
Can Capture One single channel HD HD video signals and support the resolution of Input and Output Video Signal up to 1080P at 60Hz with hardware accelerated up-scaling / down-scaling.
In addition it supports UVC video capture and YUV 422 video output the UAC is compatible with HD audio capture and 48KHz PCM audio output.
[Unique Design]
The USB 3.0 (300-350MB/s throughput) is compatible with USB 2.0 and can automatically detects input video format and converts it to the specified output size and frame rate automatically detect the input audio formats and converts it to 48 KHz PCM stereo audio. The process of video and audio is done by the dongle and will not occupy the CPU.
[Superior Compatibility Design]
Compatible with multiple USB 3.0 Chipset (for Intel Renesas for ASMedia for Fresco Logic) and USB 3.0 Interface which passed PCIe Gen 1.1x1 expansion also compatible with Windows (7 8 8.1) Linux (Kernel Version and above) and OS X (10.8 and above).
[Widely Use]
Supports multiple standard development port including DirectShow (Windows) DirectSound(Windows) V4L2 (Linux) ALSA (Linux) QuickTime(OS X). Supports software compatibility: Windows Media Encoder (Windows); for Adobe Flash Media Live Encoder (Windows OS X); Real Producer Plus (Windows); VLC (Windows OS X Linux); QuickTime Broadcaster (OS X); QuickTime Player (OS X); Wirecast (Windows OS X); Potplayer(Windows) etc.
[Simple Installation and Use]
Comes with a compact portable size; No need to install the drivers and supports plug and play (it is truly PnP). Stable and reliable it will bring you much convenience and fun.

Specifications
Model: HDV-UH60
Product Type: HD to USB3.0 Video Capture Dongle
Audio and video capture standards of UVC and UAC
Interface: HD 1.4 Input (HDCP1.4) compatible with DVI 1.0; USB3.0 (300-350Mbps) Output.
HD Input Resolution Supported: 480i 480p 576i 576p 720p/50 720p/60 1080i/50 1080i/60 1080p24/25/30/50/60.
HD Output Resolution Supported: 640 * 480; 720 * 480; 720 * 576; 768 * 576; 800 * 600; 1024 * 768; 1280 * 720; 1280 * 800; 1280 * 960; 1280 * 1024; 1368 * 768; 1440 * 900; 1600 * 1200; 1680 * 1050; 1920 * 1080; 1920 * 1200; 640 * 360; 856 * 480; 960 * 540; 1024 * 576.
Color Space: RGB / YCBCR 4:2:2 / YCBCR 4:4:4
Audio Input Supported: LPCM 32~192KHz; Audio Output Supported: LPCM 48KHz.
Frame Rate: 25/29.97/30/50/59.94/60 fps
Power consumption: < 2.5W
Color: Silver
Main Item Size: 9.8 * 5.5 * 1.5cm / 3.85 * 2.16 * 0.59in
Main Item Weight: 101g / 3.59oz
Package Size: 14.0 * 9.0 * 4.0cm / 5.51 * 3.54 * 1.57in
Package Weight: 223g / 7.88oz

Package List:
1 * HD to USB3.0 Video Capture Dongle
1 * USB3.0 Cable
1 * English User manual
